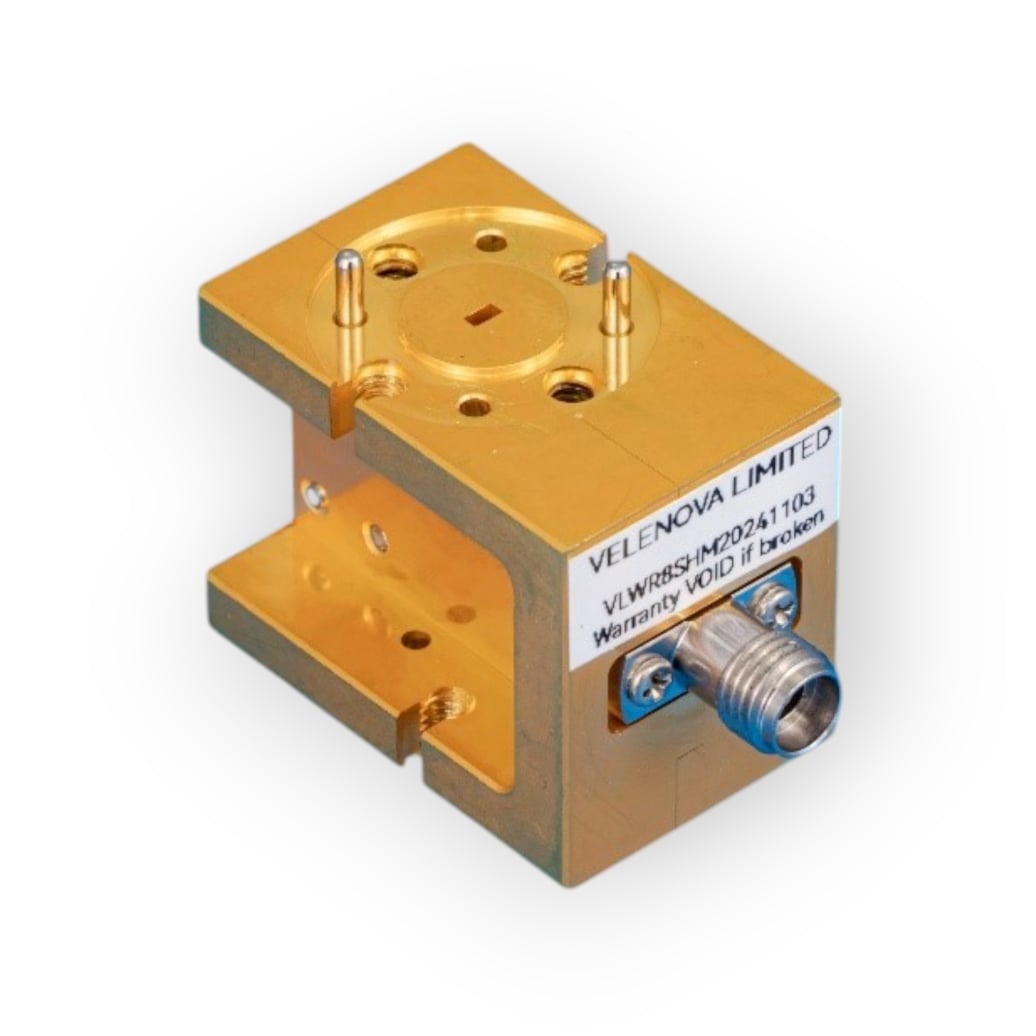

The VL-WR8SHMX is a bidirectional sub-harmonic mixer designed for both up-conversion and down-conversion. It operates within an RF frequency range of 90–140 GHz and features a WR-08 waveguide interface.
The LO port operates at 45–70 GHz with a WR-15 waveguide interface, while the LO driver requires a power level of +3 to +7 dBm. The IF range extends from DC to 19 GHz and is equipped with an SMA female connector.
